Pioneer Verve Family Bunk Hybrid

2022 PIONEER VERVE – identical spec to a Trakmaster Explorer

Wow here we have a Unique Australian Made 14′ Family Bunk Hybrid w/ inside shower toilet and table with seating for 4

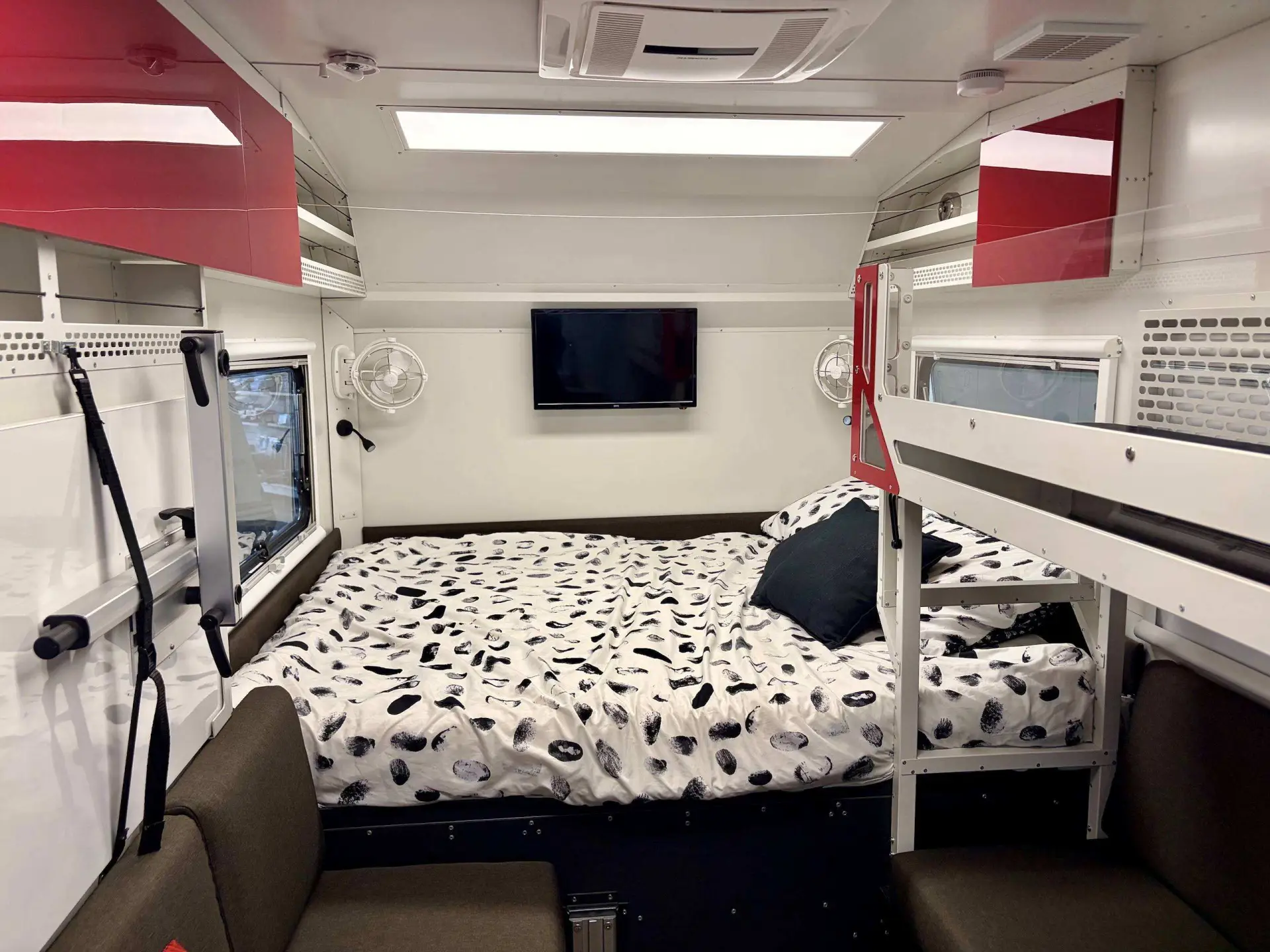

EAST/WEST QUEEN BED WITH BUNKS

TARE 2012

ATM 2600

BALL 167

HEIGHT WITH AIR CON: 3000MM

WIDTH-WITH GUARDS: 1990MM

WIDTH WITH AWNING: 2070MM

LENGTH BODY EXTERNAL: 6340MM (20.8ft)

LENTH-BODY EXTERNAL WITH BIKE RACKS: 7010MM

BODY CONSTRUCTION

Precision sheet‐metal wall and roof construction 

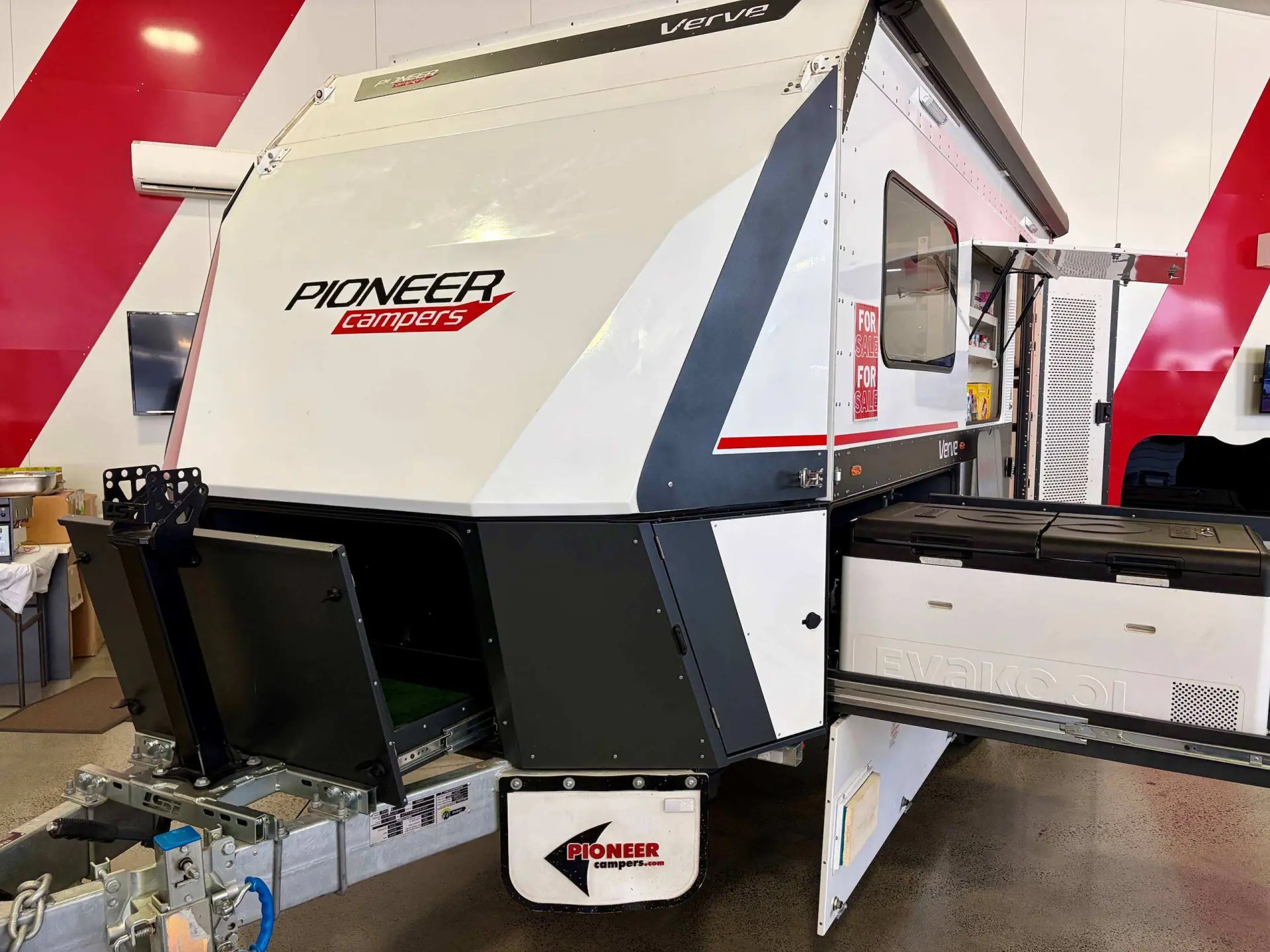

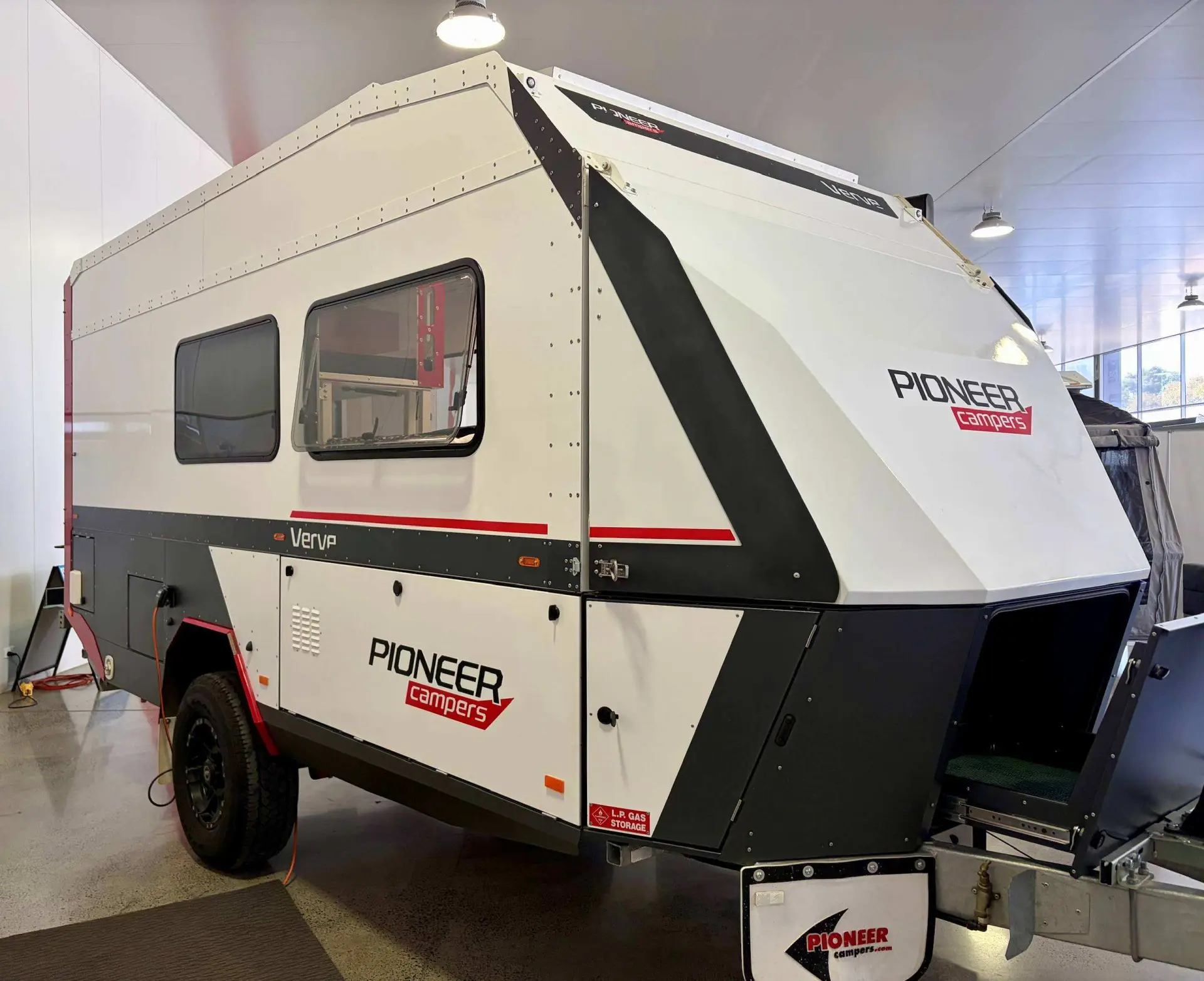

Lightweight aerodynamic front nose cone offers dust free storage and unique styling 

Front nose locker (~660L) featuring ARB® aluminium track and load ring set x 4

Large slide‐out drawbar storage unit (~250L) 

Front boot side lockers ~120L each (Gas bottles and storage)

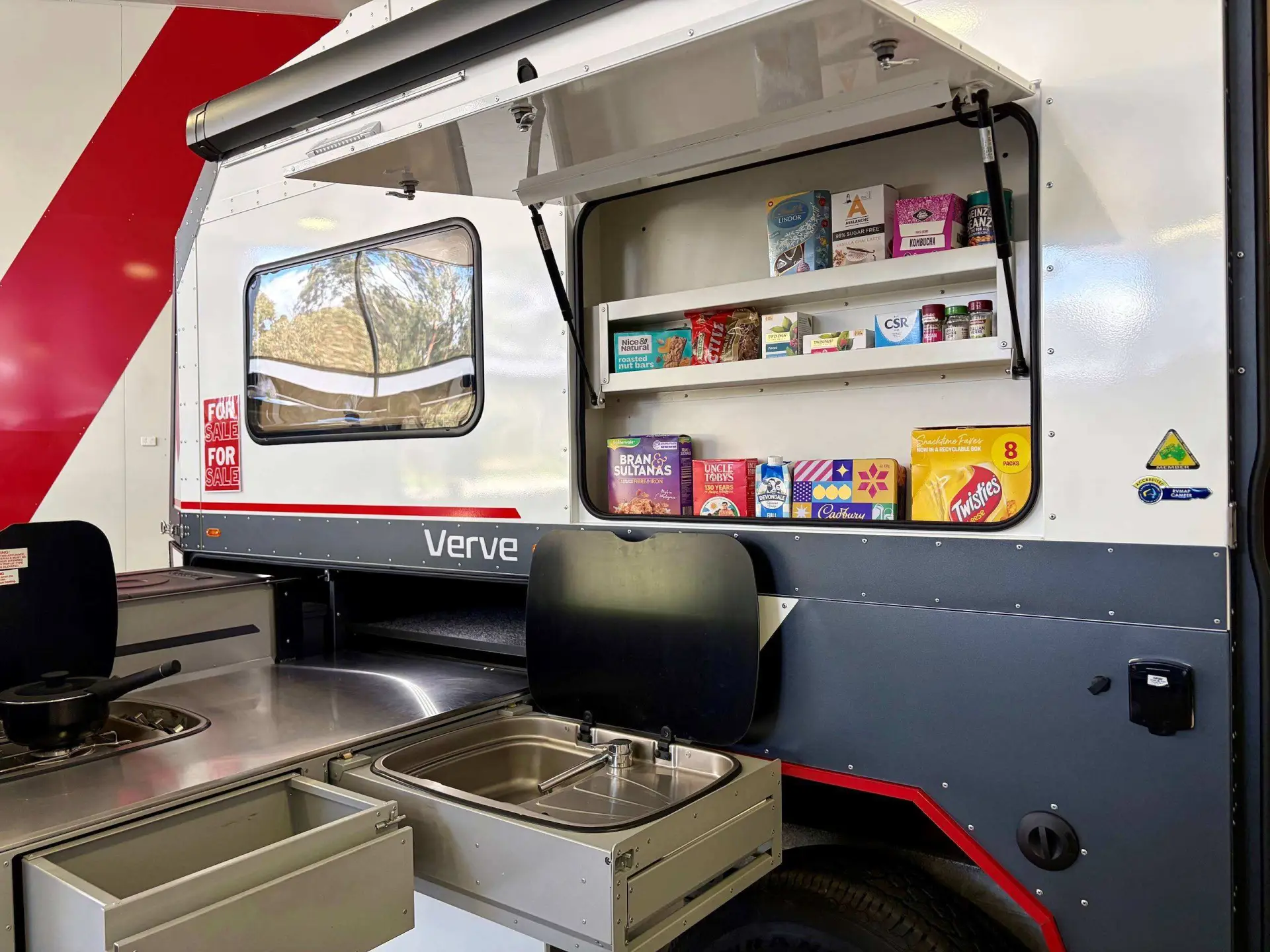

Large external pantry (~115L) 

Full height entry door with slam shut lock, deadlock, thick automotive rubber seals, 

compression catches, built in sand‐fly proof screen and aluminium security panel. Vented or fully sealed depending on internal gas appliances

INTERIOR

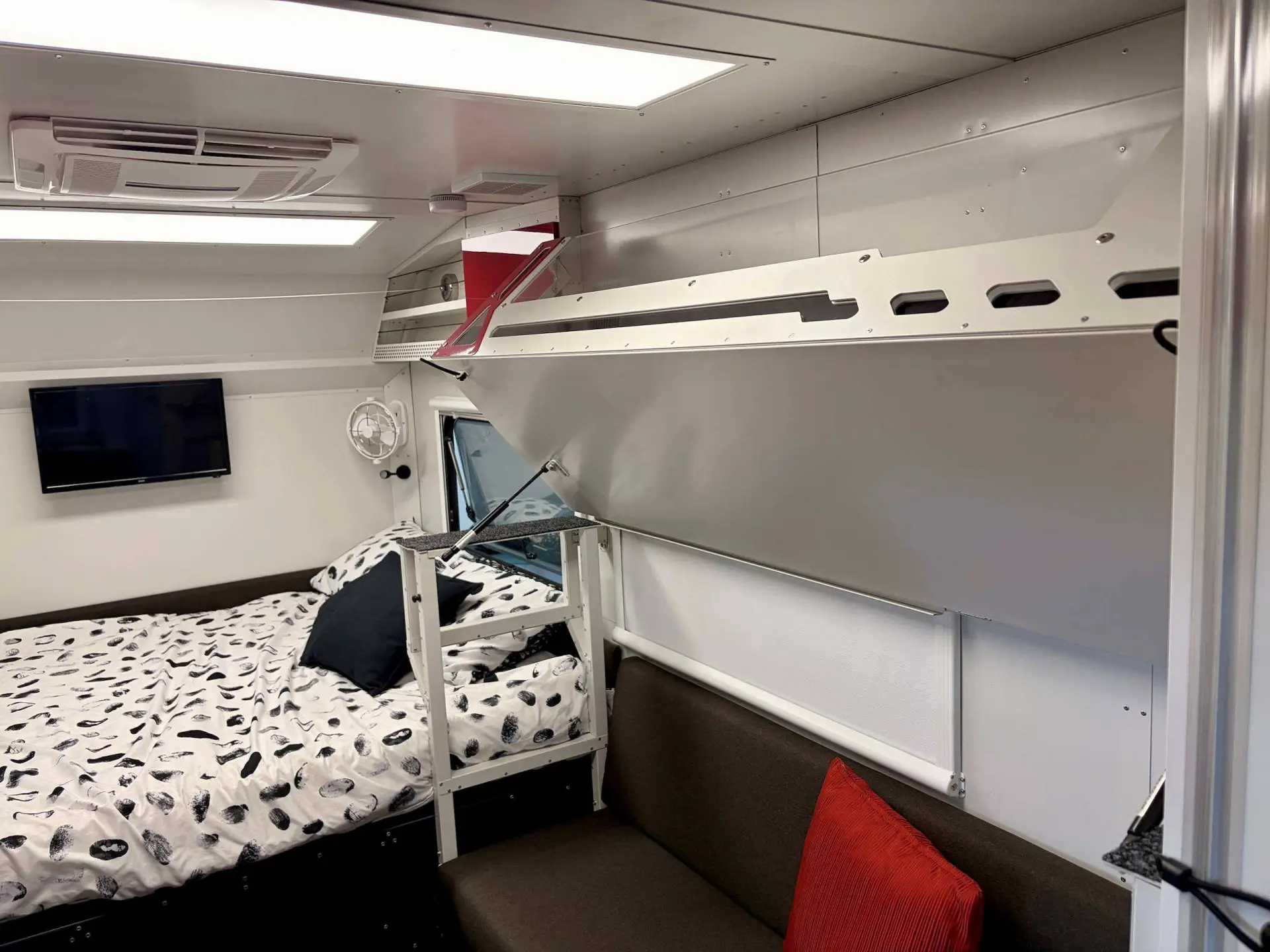

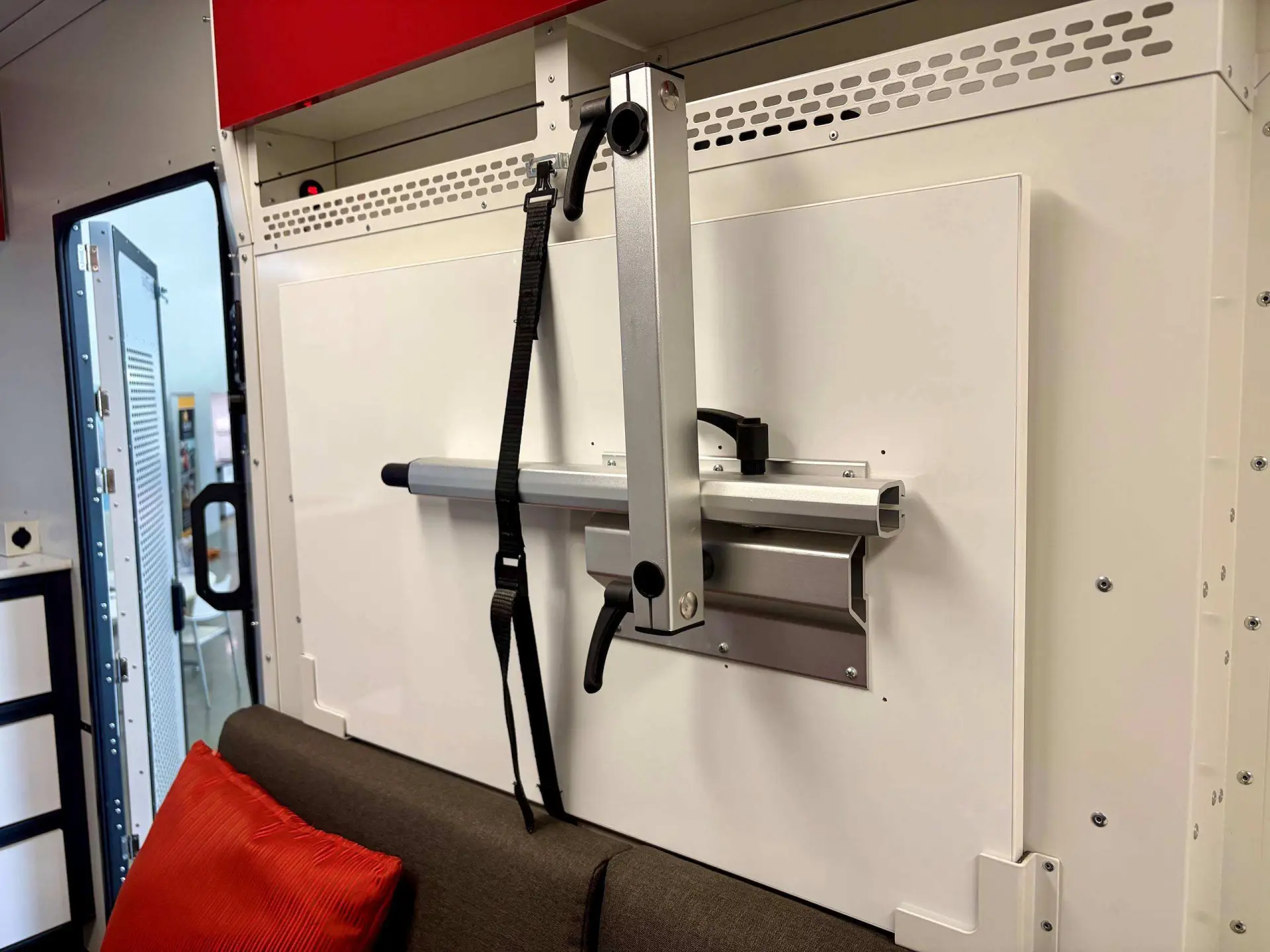

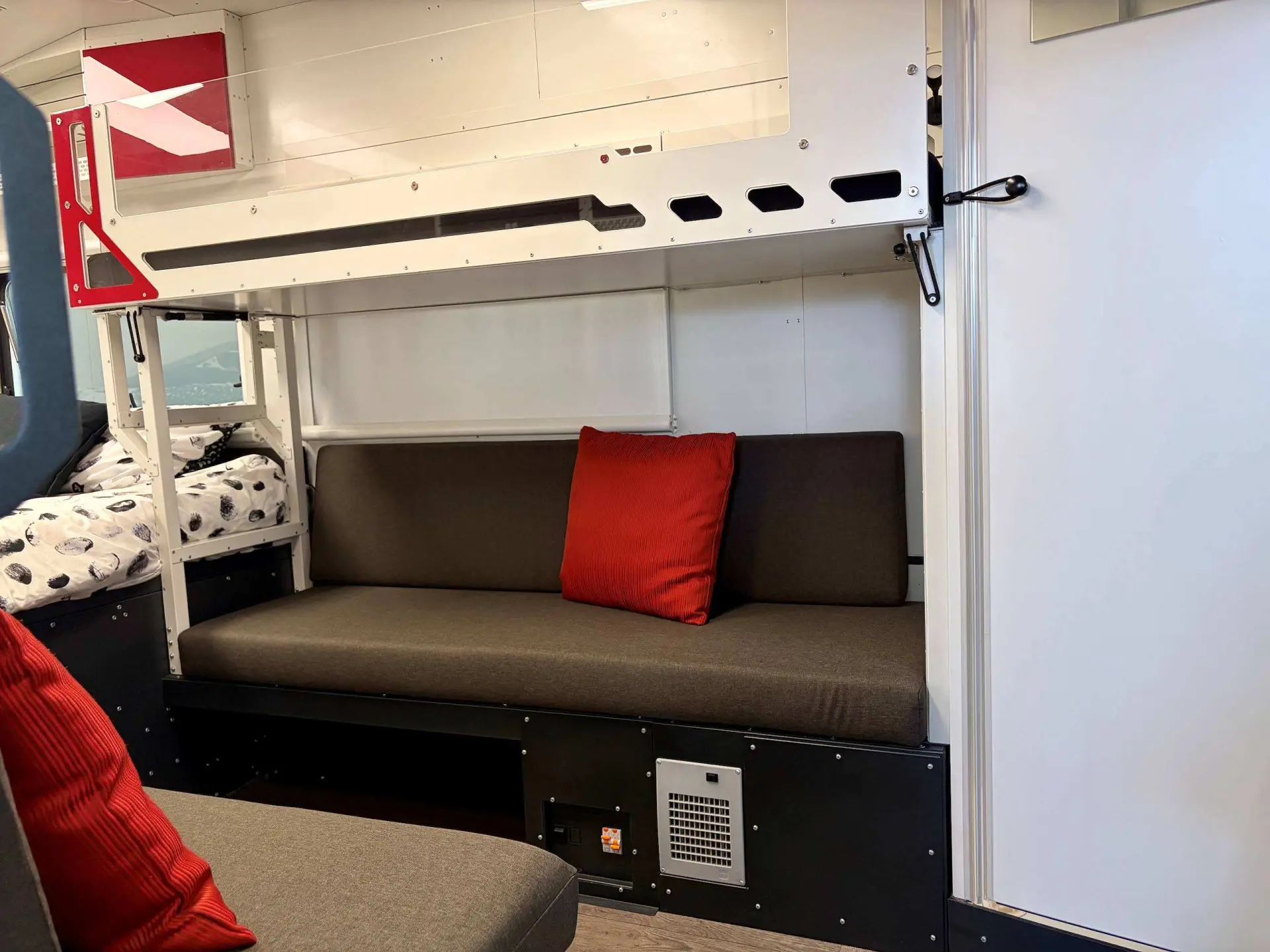

Single fold down bunk over RHS seating with ladder 

Ultimate pocket spring mattress and under‐mattress liner 

Magnetic soft‐ closing overhead lockers providing ‘easy access’ to clothing, food and supplies. Featuring bed end open storage following the roof contour

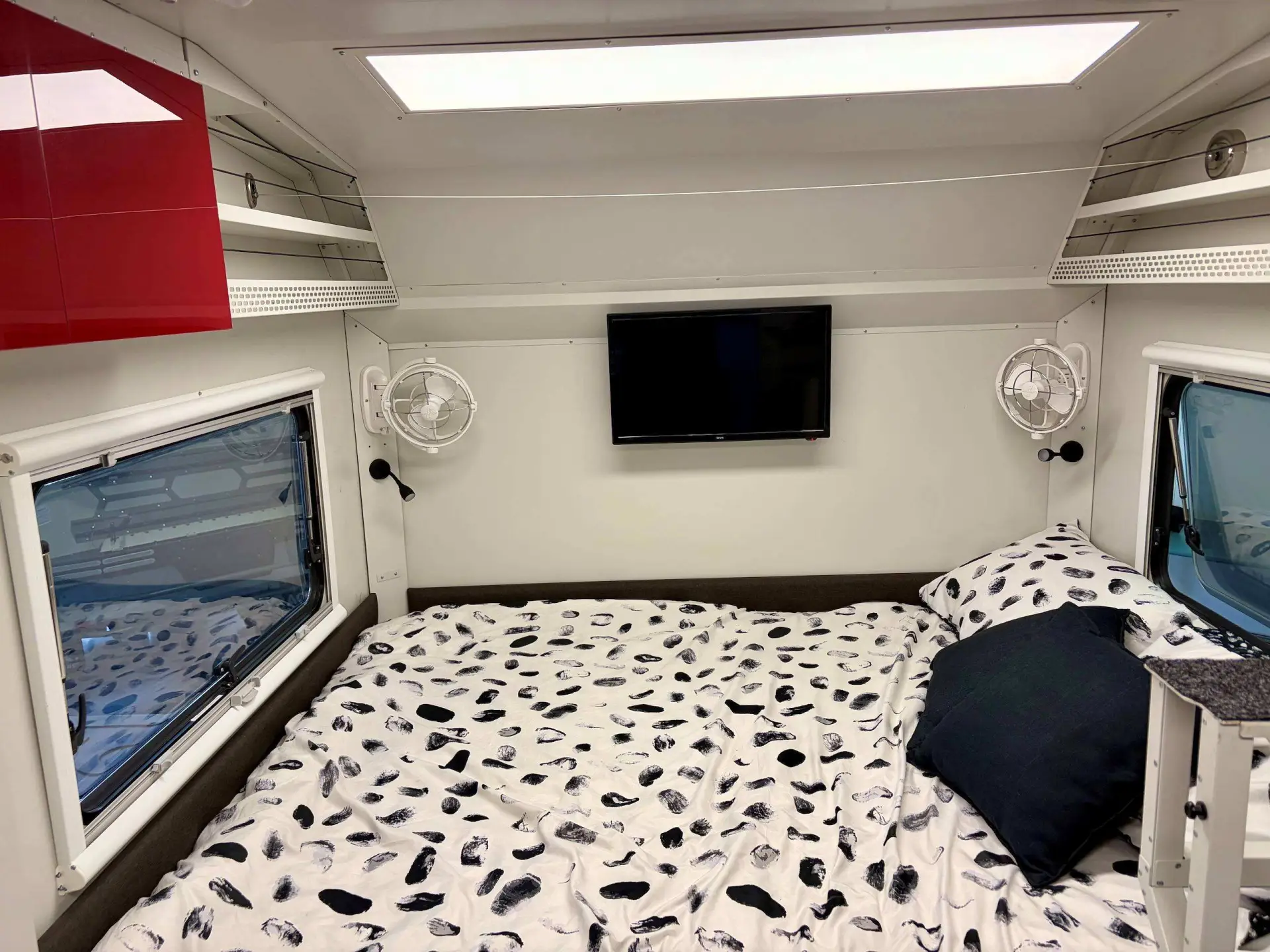

2 x Sirocco 12V fan, wall‐mounted, 3 speed and timer

2 x large windows in bed area for enhanced ventilation with blinds and sandfly screen

1 x large window in the dinette area with blind and sandfly‐screen

1 x large window above sink at rear of van blind and sandfly‐screen

Ensuite window with blind and sandfly‐screen

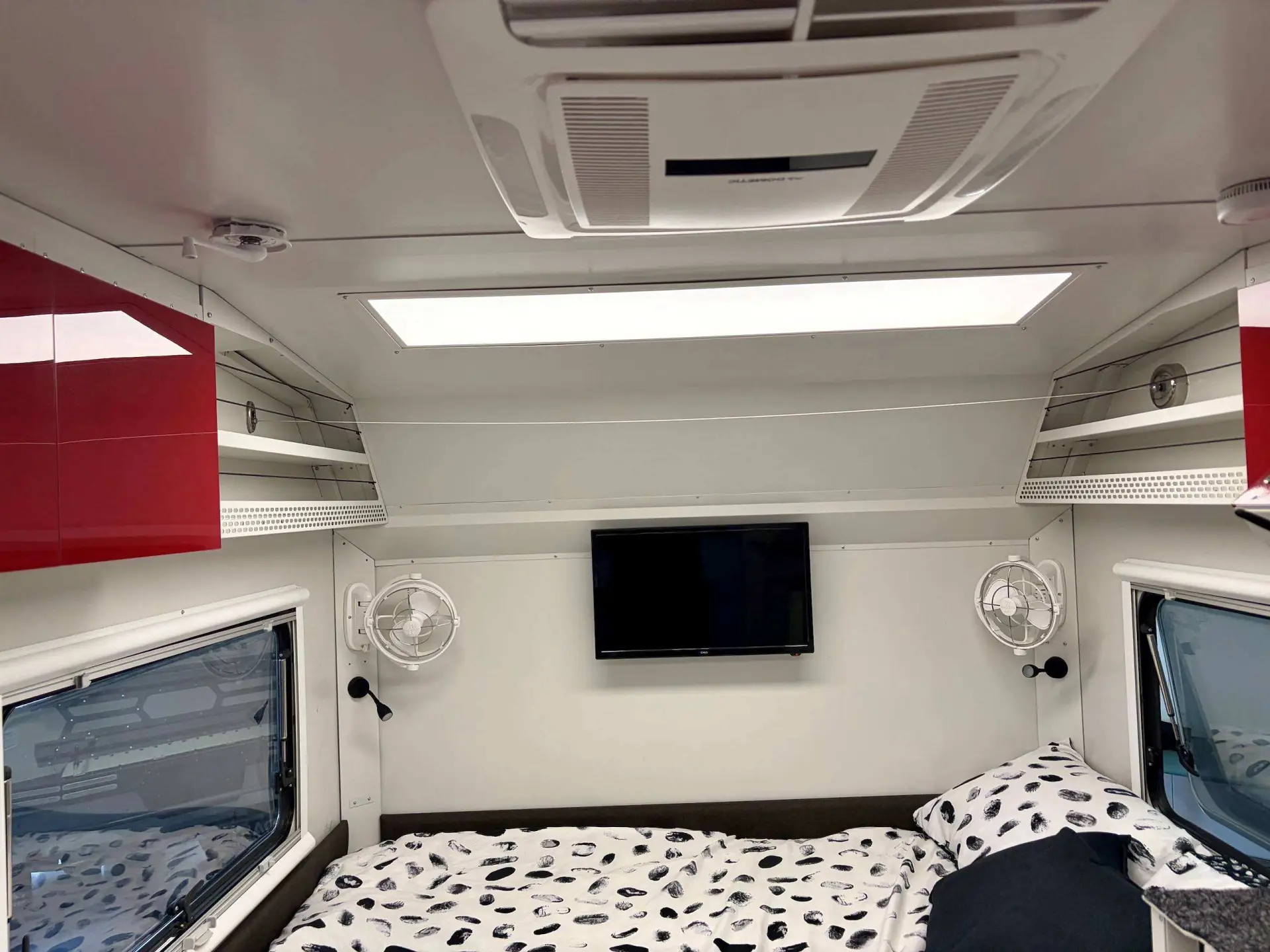

Roof mounted reverse cycle air conditioner (replacing skylight hatch) with remote control and built in LED lights

Pull out compact clothes line over the bed 

Internal selection of water source ‐ tank(s), other (draw from a jerry can/other)

2 x large and deep overhead lockers

2 x 240V power points located door side on benchtop (not available if gas cooker option is fitted

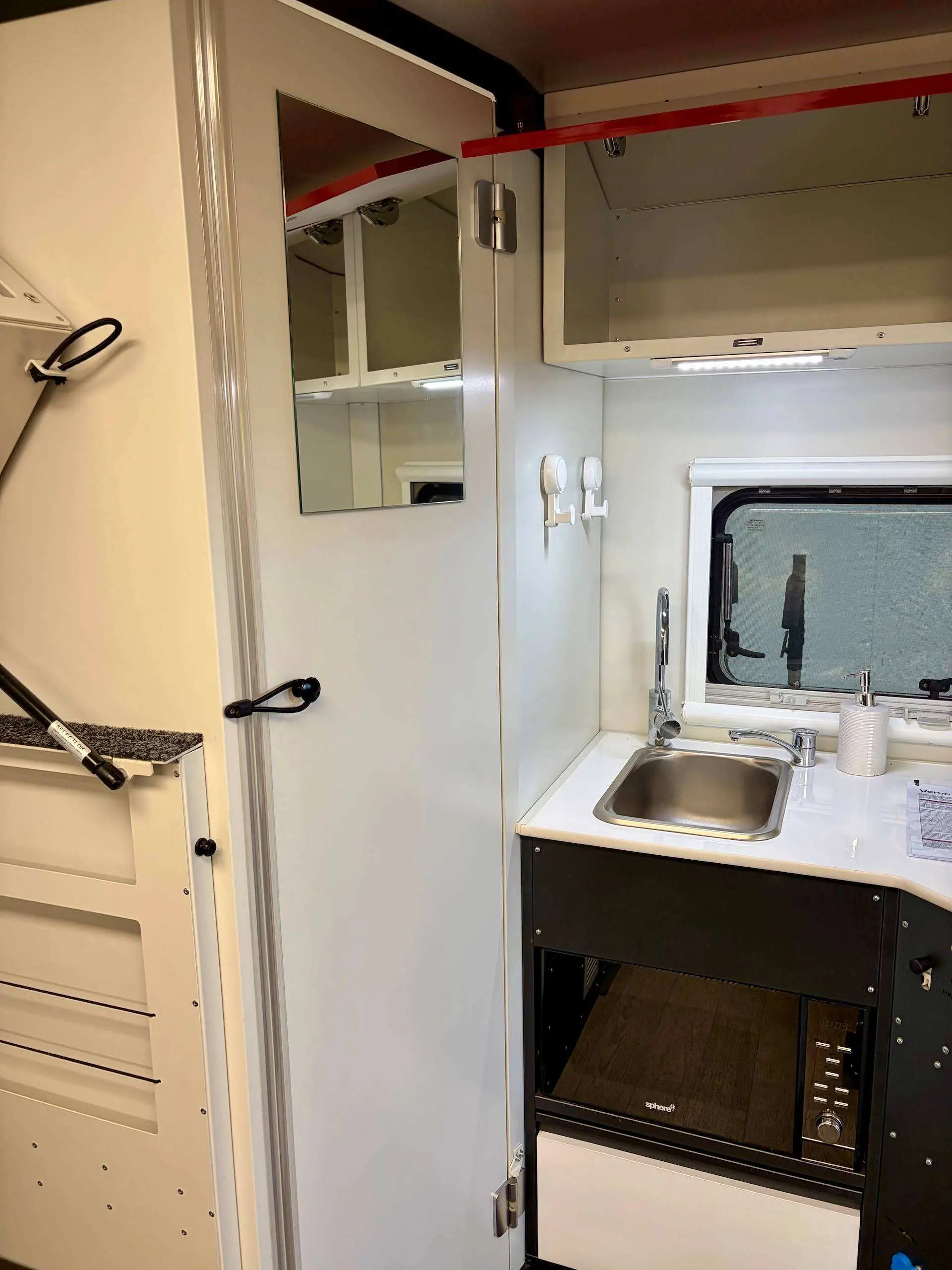

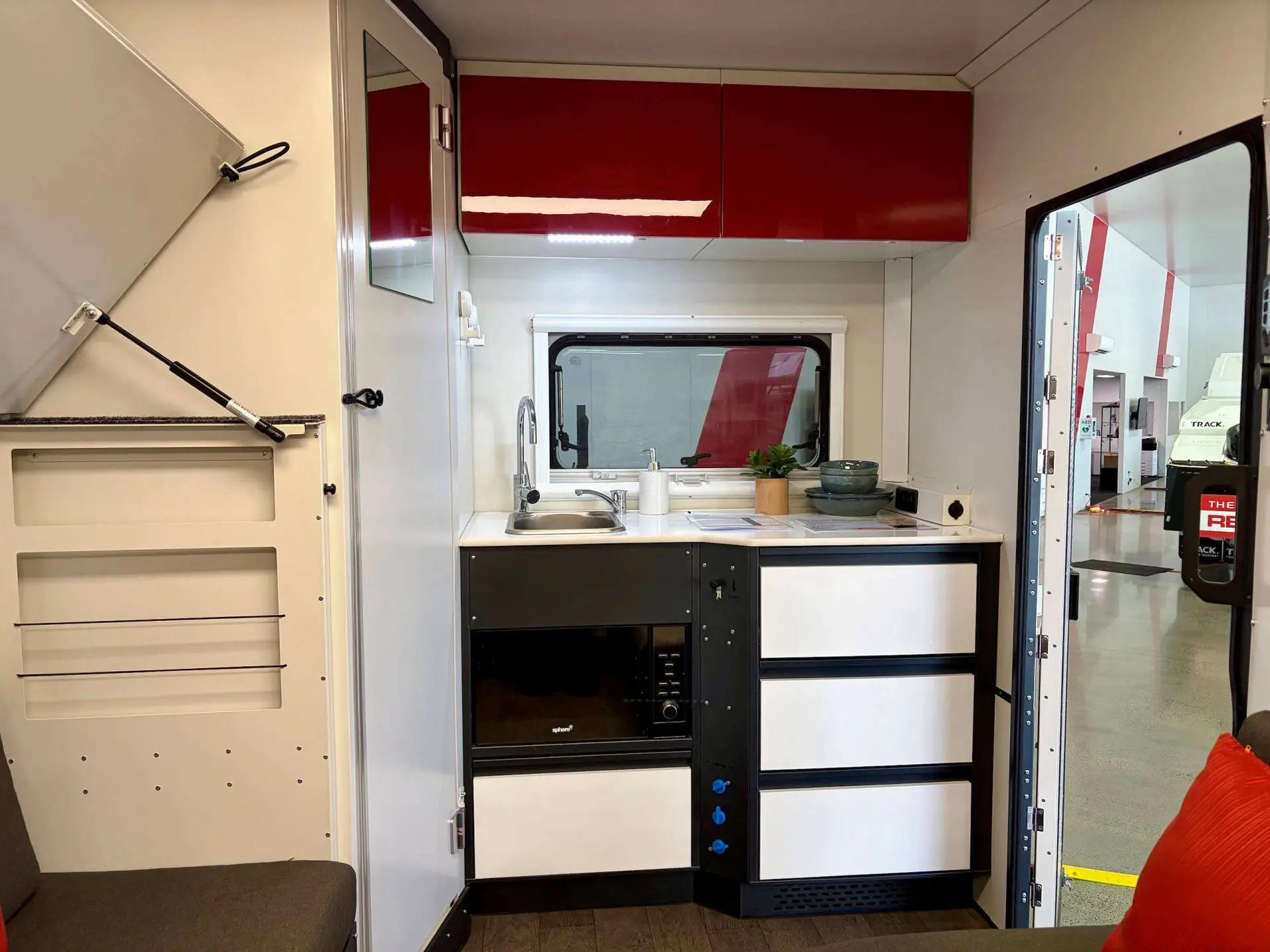

Internal sink (11L capacity) plumbed directly to onboard grey water tank with flick mixer pressurised tap

Hand pump including an isolated drinking filter

All drawers feature manual central locking allowing the user to engage all drawer locks easily and simultaneously prior to departure – an Industry first!

900W microwave located under sink. Replaces large drawer but retains medium drawer underneath (350D x 260H x 465W)

Swap gas hot water unit for Webasto PHEC Integrated Hot Water and Heating (Thermo Top Evo 5 furnace)

WATER

150L front‐mounted water tank

100L mid‐mounted water tank

50L rear‐mounted grey water tank

Drawbar mounted cold water tap

POWER

REDARC Manager 30 Multi Stage AC‐DC battery charger and DC‐DC charger with MPPT solar regulator, dual battery isolator, load disconnect controller

REDARC RedVision with Bluetooth control for systems and management of power consumption

2 x Revolution Power 12v 125Ah Lithium Battery (Orange Top)

3 x 120W solar panel mounted on roof

Anderson plug to tow vehicle with fuse

External solar input Anderson plug

REDARC inverter 2000W

Integrated positive pressurisation system. Featuring a powered ”fresh air” pre cleaner/filter and pressuriser with Vortex Hyper FLOW Technology. This technology is straight from the agriculture industry. Powered from the vehicle by Anderson plug and drawing air from a snorkel behind the front nose cone, its superior precleaning, filtration, and pressurisation forces air into all the compartments and body of the Pioneer ensuring dust proofness

SD dual lens (120° and 45°) Safety Dave camera pack in white, high mounted on the rear wall, wired to drawbar and terminated in a WOZA socket for vehicle connection. This camera carries audio and infra‐red night vision capabilities and is fully waterproof with an IP68 rating

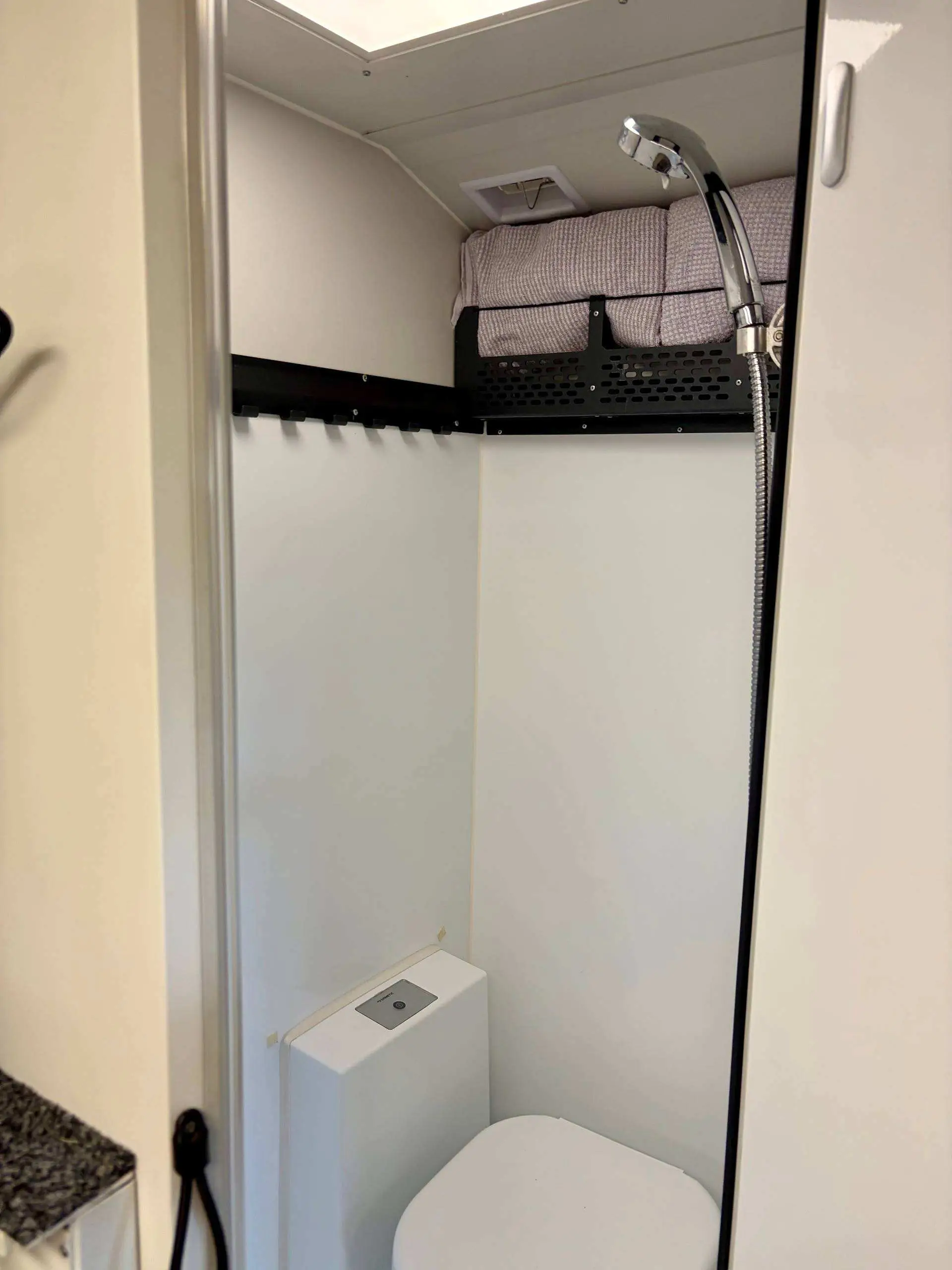

INTERNAL ENSUITE

Single handed operation with a flick‐mixer and full‐height shower rose

Dometic Saneo CS cassette, 16L black tank with a bowl adjustable by 90° in both directions

MEDIA

2 x large dimmable roof LED panels ‐ above bed and above dinette

2 x pivoting reading lights by the bed with built in USB chargers

2 x external LED lights with yellow and white output, entry side of van

Front boot and side external lockers LED lighting

Wall‐mounted LED 24” TV with built‐in DVD including Winegard® antenna

EXTERNAL PULL OUT KITCHEN

2 x 4.0KG gas bottles

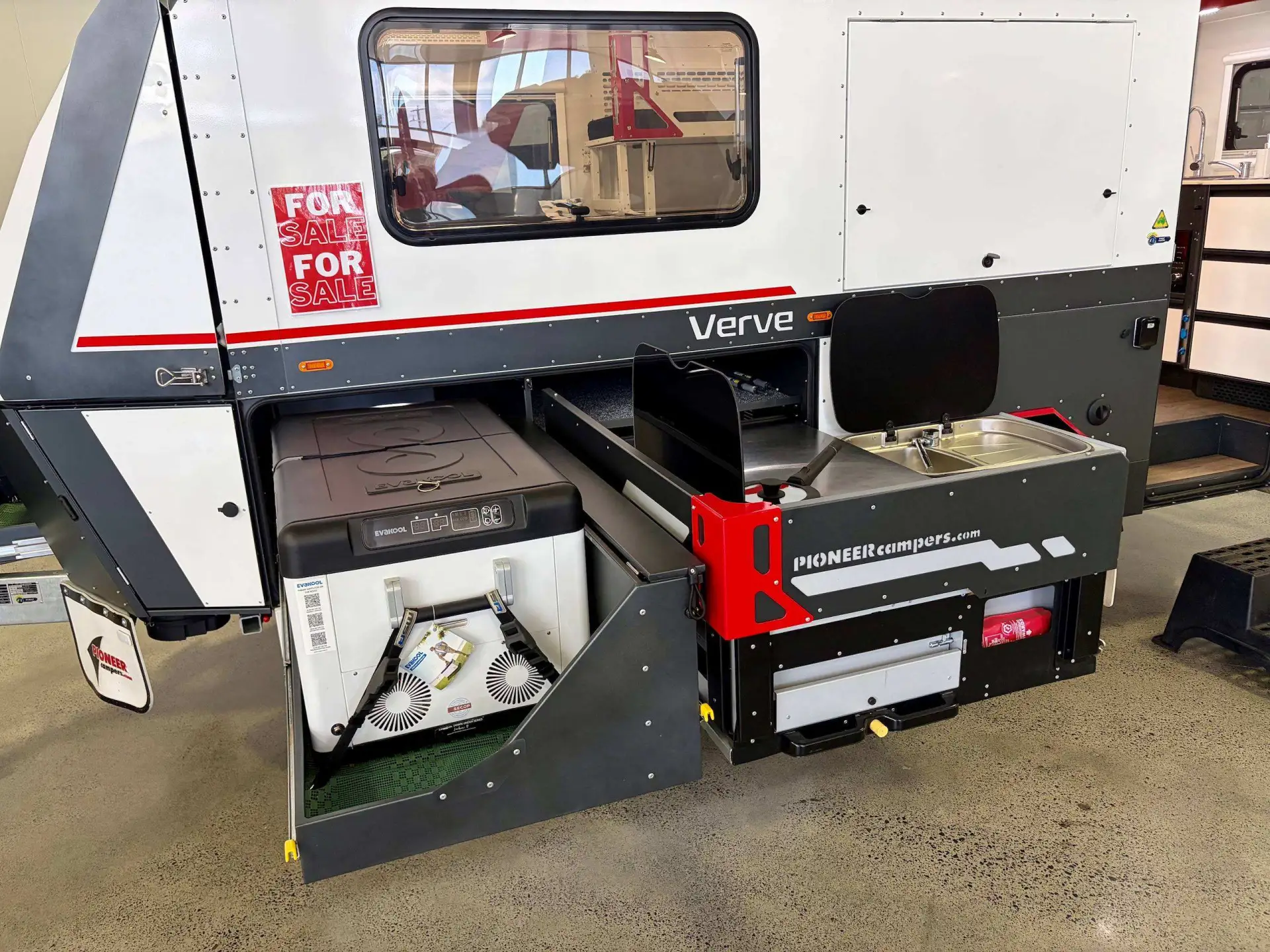

Large pull‐out fridge drawer with 95L dual zone fridge, tie downs and extra storage

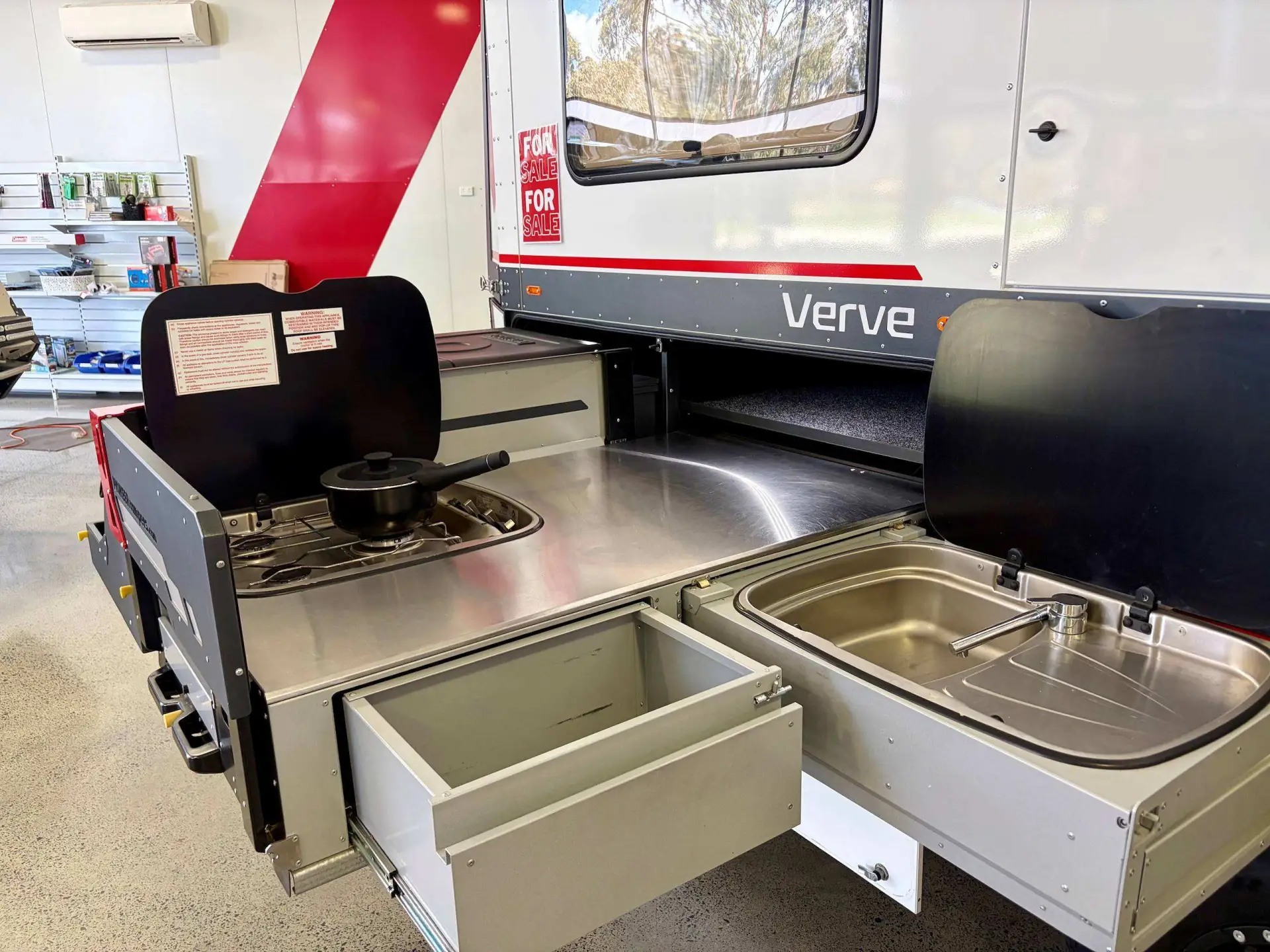

Upgraded Premium stainless‐steel pull‐out kitchen with larger prep space, easy‐to use windshield, 3 large storage drawers, glass‐top 3‐burner cook top with Piezo ignition, glass‐top sink with flick‐mixer tap (H/C), storage pockets and bottle opener

EXTERIOR LIVING

Electric Awning (3.9 x 2.5M)

Sail awning to cover the front nose cone

Awning shade wall

Storage Cover

CHASIS

2.6T ATM

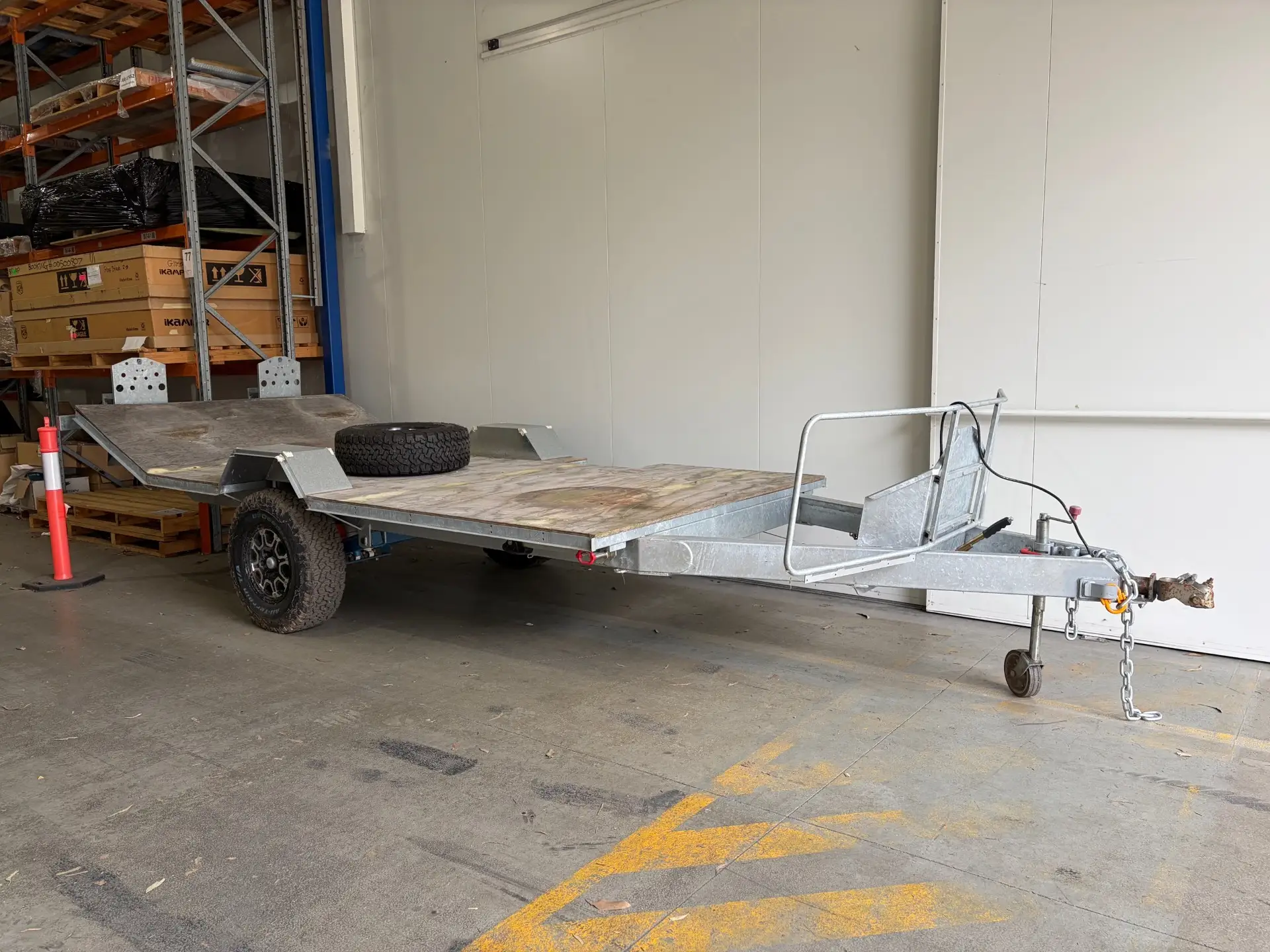

The Pioneer Verve features a custom designed chassis and uniquely tuned Trakmaster Trak‐Two independent trailing arm coil suspension with twin shocks. This ensures even weight distribution and a manageable ball load within the 10%‐15% required to achieve good towing stability

Hot Dipped Galvanised (HDG) chassis,

Tough steel stone deflectors

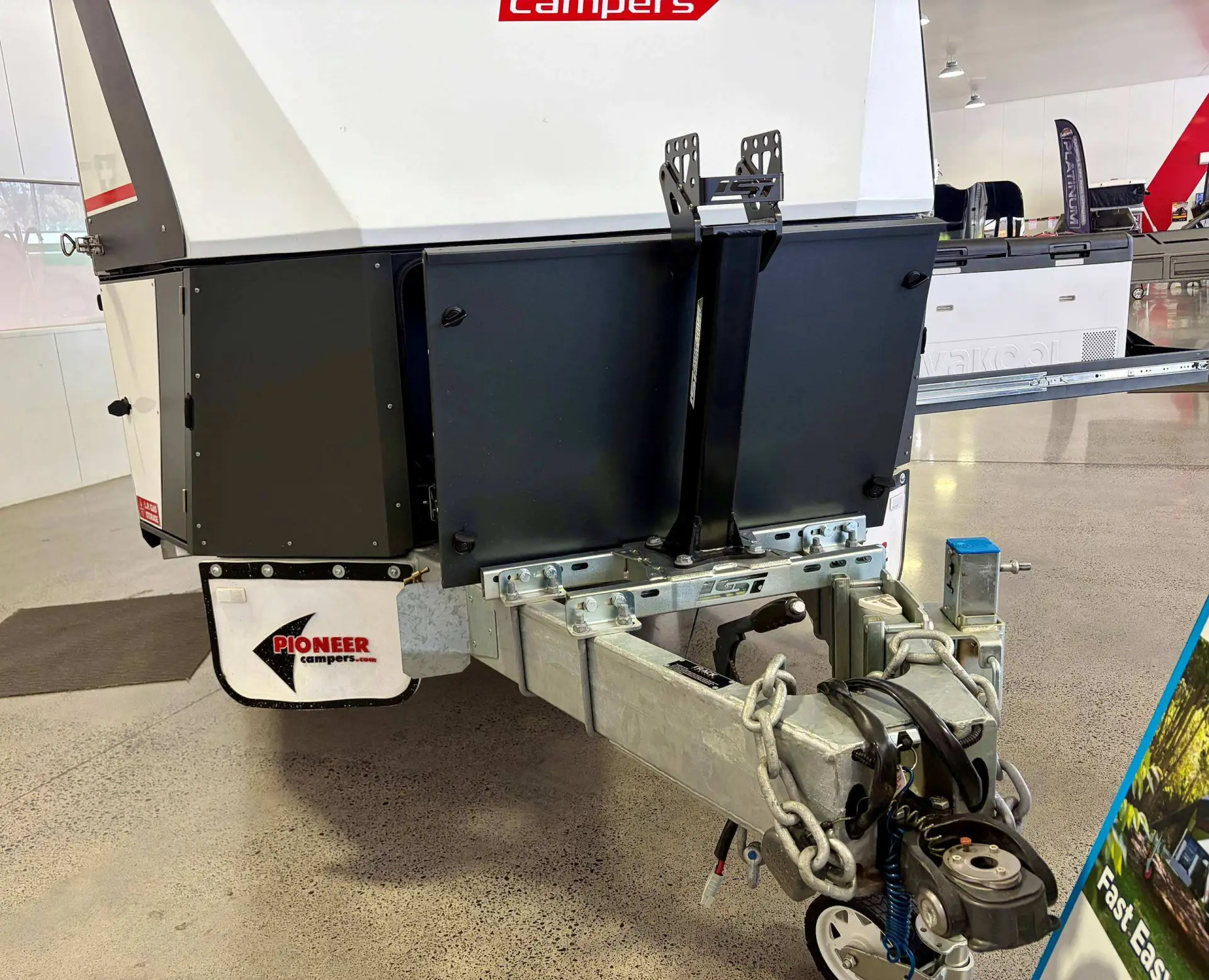

Cruisemaster® DO35 – 3.5T off‐road coupling and hand brake

Cruisemaster® 12” off‐road electric brakes and parking brake wheels with 60/40 off road tyres – 3 x 16” x 8”

Spare wheel located under body on winch

Break‐away controller designed to apply the trailer brakes and brake lights if the caravan is accidentally separated from the tow vehicle

Dexter® Sway Control

ARK® dual wheel height adjustable solid jockey wheel & drawbar spirit level

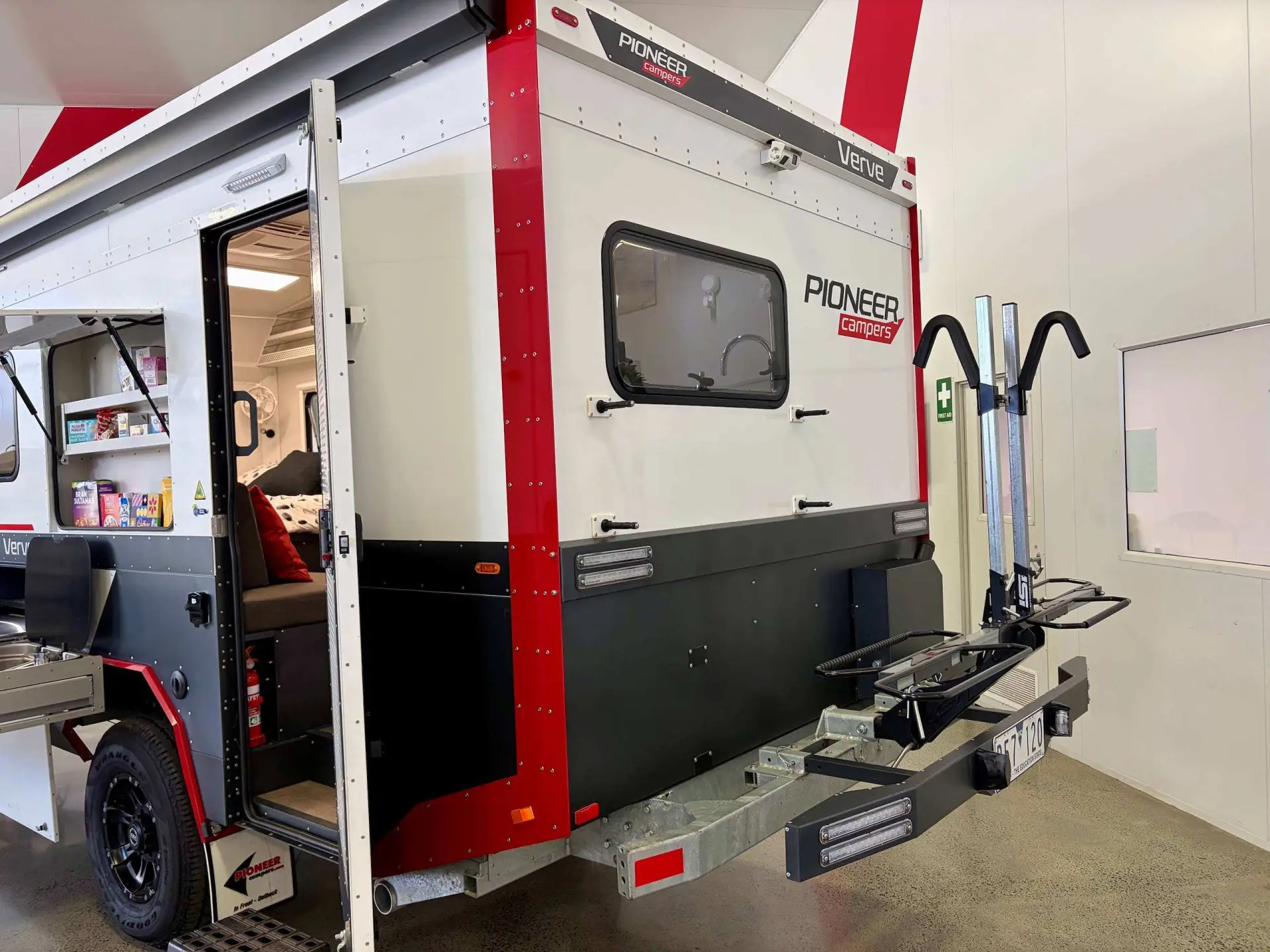

Rear bumper bar with Bike rack module including ISI® 2 bicycle carrier assembly

Maxtrax® mounting pins
